Forward arming and refueling point (FARP) systems


SEI specializes in designing fast, mobile, forward-deployed fuel systems for austere conditions.  Our systems are available as Fixed-Wing (FW) or Rotary-Wing (RW) supplied FARPs.


What is a FARP?

A Forward Arming and Refueling Point (FARP) is designed to provide fuel and ordnance necessary for highly-mobile and flexible helicopter and fixed-wing operations.  The size of the FARP varies with the mission and the number of aircraft to be serviced.

Some common design challenges for FARPS include the following points:
  • Almost all FARPS are established in austere conditions that can include arctic, desert or jungle environments.
  • They have no local fuel storage or pumping facilities available.
  • They often use unimproved runways that may be gravel or require short takeoff and landing.
  • FARPs operate with minimum ground personnel and little or no heavy lifting equipment available.
  • Time is of the essence which means that it's essential products must be designed for rapid deployment.
  • FARPS are resupplied from Fixed Operating Base (FBO) by aircraft.  Space on the aircraft is limited so maximizing the aircraft’s delivery capabilities is also essential.
All FARPS typically use diesel fuel pumping equipment to transfer fuel from portable fuel storage tanks to replenish small aircraft involved in Intelligence, Surveillance, Reconnaissance (ISR), and Direct Action/Enforcement (DA/DE) roles.  Filtration skids with totalizing flow meters are used to ensure the right amount of clean fuel is dispensed to the aircraft.  Deadman stops, control systems, spill kits, fire suppression equipment and additive skids are optional.


Fixed-Wing FARP

FARP ProductsOur FW-FARPs rely on SEI's Bulk Aviation Transport Tanks (BATT) to transport bulk liquid fuels to forward areas from an FBO.  The BATT is a double-walled collapsible fuel bladder that is designed to be installed inside the fixed wing aircraft.  It utilizes the aircraft's existing tie down hard points to secure the tank to the aircraft.

The BATT has baffles inside the inner tank to minimize liquid surge and a built-in harness system on the outer tank to secure the BATT to the aircraft.  The BATT can be installed in minutes, allowing the aircraft to maintain its multi-mission role.  Depending on the size of the BATT, the aircraft can carry fuel and refueling equipment in a single trip to rapidly establish a new FARP.

Once the aircraft carrying the BATT arrives on scene, fuel is then pumped from the BATT to collapsible fuel storage tanks on the ground.  In some cases, a palletized BATT can be used.  In these operations, the BATT is strapped to a standard 463 L pallet and the whole pallet is dropped off with the BATT full of fuel.

Once the fuel is transferred to the static storage tanks, the aircraft can return to the FBO for more fuel or can be quickly converted for other missions.

Each FW-FARP can be customized to an aircraft platform and may include:
  • Bulk Aviation Transport Tank (BATT) or palletized Bulk Aviation Transport Tank (BATT)
  • Collapsible storage tanks with secondary containment berms
  • Double-walled collapsible storage tanks with integrated secondary containment
  • Diesel power pump skid
  • Filtration and metering skid
  • Suction hoses
  • Discharge hoses (lay flat or rigid)
  • Manifold system to interconnect tanks and facilitate recirculation of fuel
  • Over-wing or closed circuit refueling nozzles
  • Operations manual

Rotary-Wing FARP

RW-FARPs are designed around helicopter assets that offer vertical take-off and landing (VTOL) capabilities.  These systems may utilize underslung tanks such as the Fuel-Easy or the Double Drum or a Bulk Aviation Transport Tank (BATT) to provide bulk fuel to the FARP.

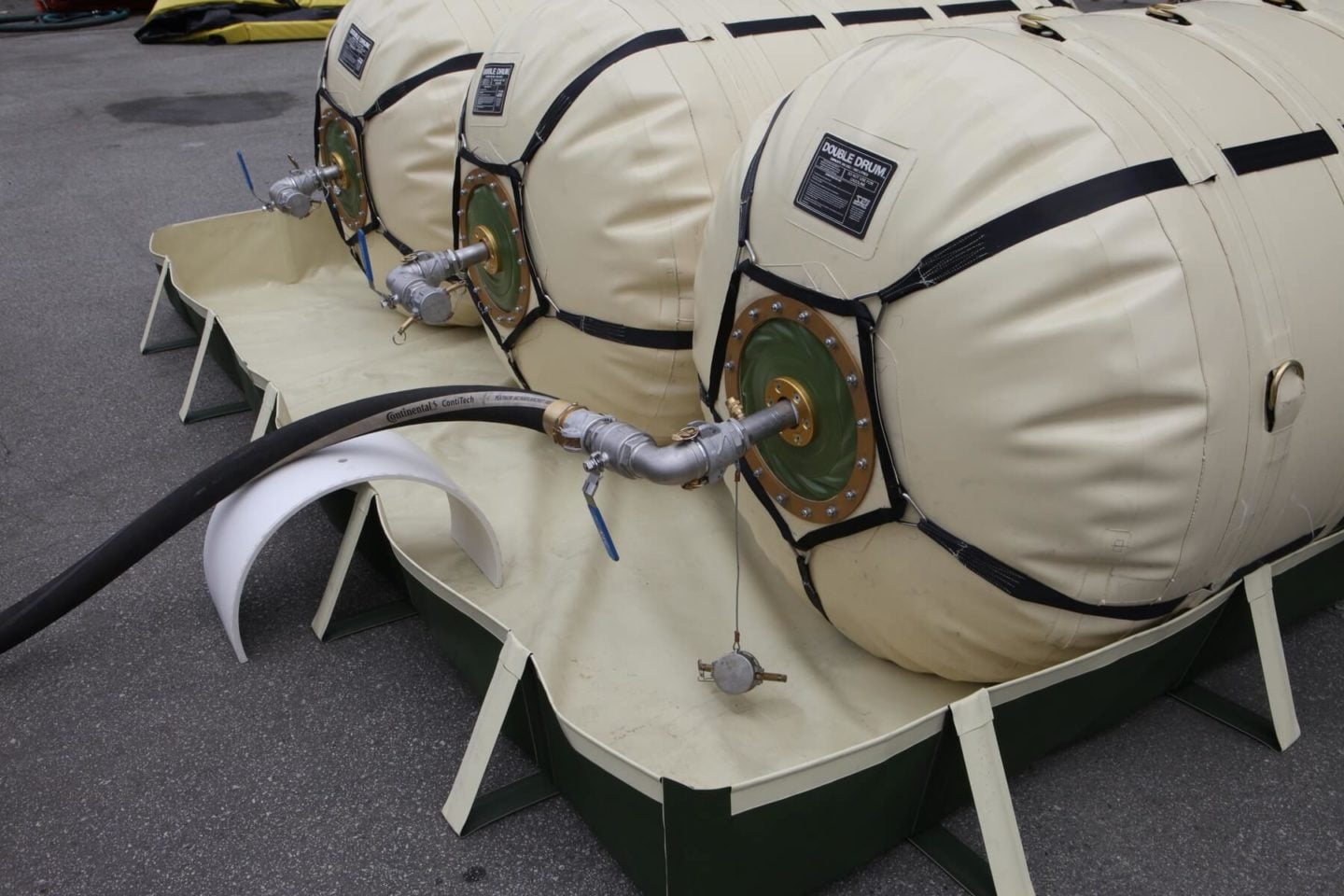

If Fuel-Easy or Double Drum tanks are utilized, they may be dropped off full at the site by the helicopter without landing.  They can also be used as temporary static storage tanks.

Typically, these systems include multiple tanks so replenishment can continue, as one tank is used at the FARP, a second is being filled at the FBO and a third is in transit to or from the FARP.  Helicopters transport the empty tanks back to the FBO as underslung loads or the tanks are collapsed and carried back as cargo.

If the BATT is utilized, the fuel is pumped from the BATT, installed inside the aircraft, to collapsible fuel storage tanks on the ground.  If the BATT is used, the helicopter must land to defuel the BATT.

Each RW-FARP can be customized to a helicopter type and may include:
  • Fuel-Easy (minimum of three recommended)
  • Double Drum (minimum of three recommended)
  • Bulk Aviation Transport Tank (BATT)
  • Collapsible storage tanks with secondary containment berms
  • Double-walled collapsible storage tanks with integrated secondary containment
  • Diesel power pump skid
  • Filtration and metering skid
  • Suction hoses
  • Discharge hoses (lay flat or rigid)
  • Manifold system to interconnect tanks and facilitate recirculation of fuel
  • Over-wing or closed circuit refueling nozzles
  • Operations manual
SEI is capable of customizing each FARP with the goal of maximizing fuel delivery to forward areas based on different aircraft configurations.  Common off-the-shelf components are used in modular refueling system designs that are compact, lightweight, portable and durable.
